APM-500 C&P platform of XD group is designed for use of to constitute control and protection devices and systems for AC systems and smart grid applications. It conforms to the design specification and requirements of C&P equipment standards of power system. The platform include subsystems e.g. DYD-580 low-voltage C&P system, DYM-510 medium-high voltage C&P system and PDH-300 data interface system, which can be used to build the followings applications respectively: |
|
|

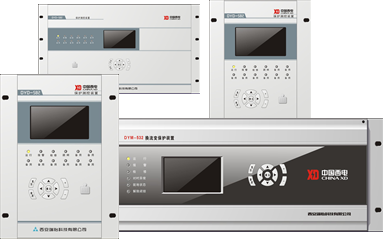

APM-500 The hardware of the APM-500 platform is installed by machine. The front panel of the chassis is equipped with a man-machine interface composed of color display, LED indicator light, function keys and debugging port. The plug-in adopts rear plug and plug and rear connection mode, and provides the function of network remote parameter configuration, which provides great convenience for operation and maintenance. The main processor module of the platform is developed based on high-performance dual-core CPU+FPGA with built-in floating-point function. Onboard SATA disk can build built-in fault record and other large capacity data storage functions according to the functional needs of products and complete sets of equipment. Platform rich IO interface plug-in, support flexible construction of optimized control and protection system structure and all levels of bus communication protocols required.
|
APM-500The system software of APM-500 platform is based on TIGAS, an embedded system software independently developed by XD Digital Technology Company. TIGAS system has multi-priority real-time task scheduling, hardware and software self-test, communication protocol support, graphical functional software development, operation and maintenance and other functions, providing a solid guarantee for the real-time, reliability and maintainability of control and protection products.
The APM-500 system consists of two sub-platforms, DY-580 and DY-530, which are used to form different products according to the voltage level and functional complexity of the application object. By combining with software systems such as DYNAS integrated monitoring and integrated energy services, as well as other XD primary and secondary equipment, the products composed of the two platforms can be widely integrated in new distribution networks, intelligent terminals and industrial control projects.
