1. Overview
The SCADA system is the software system based on computer and communication technology,to monitor and control the production process or operation site in the field of industry and public utilities, to realize functions such as data acquisition, metering, alarm, storage and analysis of data, remote operation and so on. SCADA systems are widely used in areas of e.g. electric power, railway, petrochemical, metallurgy, as well as other industrial fields.
The platform DYNAS of XD Group is a new generation of SCADA system which designed adapting to the application requirements in the era of Big Data, Cloud Computing, Internet of Things and Mobile Access. Compared with traditional SCADA system the reliability, processing capacity as well as the performance index of DYNAS system have been greatly improved. With the abundant functional performance and rich user interfaces provided by DYNAS the requirements of the user can be greatly satisfied.
(2)Product Editions
OptimizationtotheDYNASsystemis made according to the application requirements of powersystems, through definition of the models and engineering configuration, DYNAS can constitute the control and monitoring system at the network-level (dispatching automation, distribution automation etc.), and the HMI System for ACandDC stations, power plants and so on. It can also be constituted as local HMI for the site power equipment.According to applications, DYNAS can be implemented as following editions：
● DYNAS Basic: Usually installed on the C&P cabinet, composed of a single computer (IPC) with display, or a server and a workstation, to achieve control and monitoring function of local equipment, suitable for systems of about 10,000 data points.

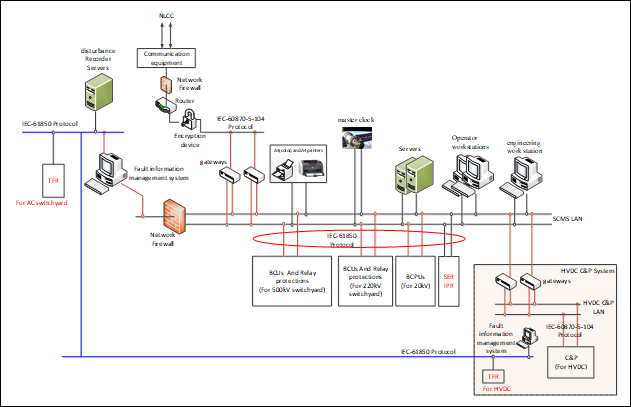

● DYNAS Standard: dual servers (duplicated redundancy), suitable for the station control and monitoring system within 100,000 data points.

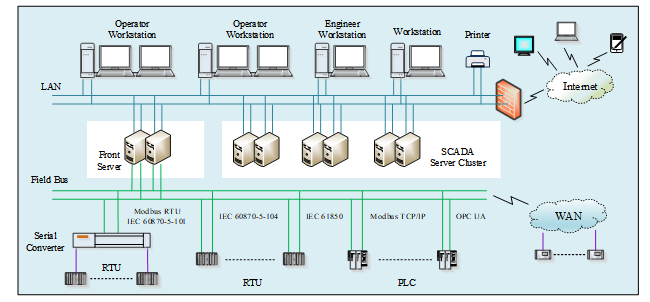

● DYNAS Professional:server cluster, local deployment, suitable for network level monitoring system of within one million data points.
DYNAS Cloud: server cluster, cloud deployment with unlimited data points, suitable for enterprise large-scale comprehensive control and monitoring system.
(3)SCADA for the Age of Internet
As a new generation SCADA system, DYNAS integrates technologies of cloud computing, big data, Internet of things and Mobile Internet etc., and adopts with brand new system architecture and technology stack, to meet the demand for the HMI system in the industrial field of the new era.
● Cloud Computing: DYNAS not only can be implemented on local computer system (local version, standard version and the professional version), but also can be deployed in the cloud (cloud edition). For the local deployed DYNAS system, project is configured by the cloud configuration tools, and then the project is deployed to the running system of the local DYNAS system for operation. For the cloud version however, services of the DYNAS system are running directly in the cloud (public cloud, private cloud or hybrid cloud), the local workstation is connected to the cloud for real-time monitoring of the system.
● Big Data: for the professional edition and the cloud edition of DYNAS system, both the database, memory storage and file storage etc. are arranged in distributed manner, support the Spark distributedcomputing, providing Operator-computing based processing on full memory mode with higher performance, handling of big data of PB level is achieved.
● Internet of Things: DYNAS supports the Internet of Things Protocol and can be used as an edge computing sub-station in the Industrial Internet of Things or as a gateway to the industrial cloud.
● Mobile Internet: all versions of DYNAS support mobile terminals such as mobile phone or pad to access the display of the App, which is specially designed for mobile terminal screen adaptation and optimization to support dual-point touch, sliding and other screen operations.
(4)Environment for Operation and Development of the DYNAS System

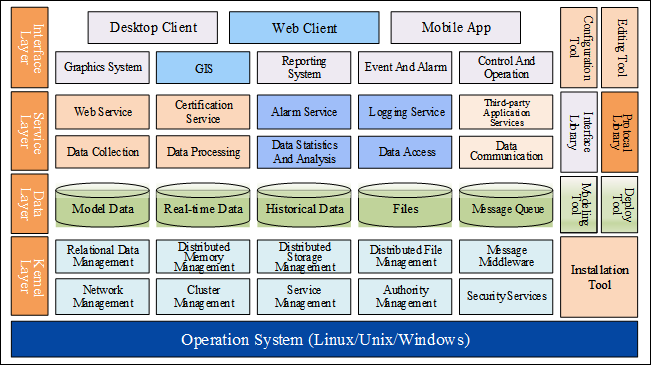

DYNAS includes runtime software and an IDE (integrated development environment).
Runtime
● Kernel Layer
The kernel layer of DYNAS includes the management blocks for e.g. Networks, Cluster, Service, Authority, Security and Distributed Files, as well as the Database Engine and the Messaging Middleware and so on. Which are used for the underlying manipulation of the hardware, communication, tasks and security etc. of the whole system.
● Data Layer
The data layer is the storage entity of all kinds of data in the system, including: model library, real-time database, history database and so on. The user files and the message queues are treated as special types of data.
● ServiceLayer
The service layer provides various SCADA services, including data acquisition service, data processing service and so on.
● HMI Layer
DYNAS is designed based on the B/S architecture, provides stable and reliable front-end framework and convenient human-machine interface components e.g. the web front-end framework, the web graphical component, web GIS, reporting tools, display and query for events and alarms as well as the interface for control and operation and so on.
2) 集成開發環境IDE
DYNAS系統的開發環境IDE主要由各種工具軟件和接口庫組成。IDE可在雲端部署，用戶無需下載任何軟件，即可進行應用系統的配置、組态及二次開發。：
●安裝工具：用于安裝DYNAS系統。
●配置工具：對系統内的節點、網絡、進程、服務、集群、數據庫等進行圖形化配置。
●建模工具：可根據應用模型，實現圖形與模型的雙向交互，實現圖模一體化。
●組态工具：組态工具用于Web顯示頁面的生成、編輯和發布。組态工具可提供豐富的圖形組件（圖元）以便于快速的工程組态。組态工具支持與模型數據的交互。
●庫編程工具：支持根據應用接口的定義生成應用系統的訪問接口；支持根據模型數據結構（或表結構）自動生成規約庫：IEC系列規約IEC 60870-5-104、IEC 61850，OPC UA規約庫，生成數據訪問接口。
●接口庫：由一系列服務接口組成，服務本身由運行環境及應用服務提供。
(5)DYNAS系統特點
DYNAS具備開放性、可靠性、安全性、易用性、擴展性、創新性等技(jì )術特征。
1) 開放性
●開放性結構：DYNAS采用開放式體系結構，提供開放式環境，支持多種硬件平台，能在Linux、UNIX、Windows等操作系統環境下運行；
●開放性标準：DYNAS的圖形、模型、接口規範及通信協議等遵循相關的國際國内标準；
●開放性平台：DYNAS系統提供通用接口規範，支持使用多種編程語言（Java，C++,C#, Python, JavaScript）的定制開發。
2) 可靠性
●部件可靠：采用經行業認證機構檢測合格的硬件、軟件産品；
●設計可靠：系統内任何軟件模塊均具備異常處理機制，異常退出的模塊有報警、日志記錄并具備自恢複功能；
●運行可靠：關鍵硬件設備冗餘配置，關鍵軟件具備容錯機制，任何單點故障不會引起系統功能的喪失和數據丢失。
3) 安全性
●系統安全：滿足軟件系統安全防護有關規定，可防備來自系統外的網絡攻擊；
●操作安全：具有完善的權限管理機制，API級用戶認證；
●數據安全：具備數據備份及恢複機制，具備數據的加密機制并采用加密傳輸協議，多重保護确保數據的安全性。
4) 易用性
●易維護：具備診斷軟件和維護工具，實現硬件、軟件和數據在線維護；
●易配置：能夠靈活配置功能模塊，模塊的增加和修改不影響其它模塊正常運行；
●易操作：人機界面友好，操作與維護模塊工具化、圖形化。
5) 擴展性
●規模伸縮：系統容量可擴充，可在線增加測控、交互信息容量，可在線增加服務器、工作站等；
●功能擴充：可通過在線版本升級進行功能變更或擴充；
●業務定制：可根據不同的業務類型組合不同的應用，用戶可定制自己的專用服務、畫面配置及系統Logo。
6) 創新性
●技(jì )術先進：設計和架構具有前瞻性，充分利用雲計算-大數據-物聯網-移動互聯網相關的成熟技(jì )術；
●性能卓越：支持負載均衡和分布式計算，系統主要性能比現有同類系統顯著提升；提供獨有的曆史數據高速緩存算法，顯著提升數據訪問效率；
●功能豐富：可支撐多數據類型的信息融合與多業務類型的互動操作。
DYNAS系統人機界面
