Project introduction

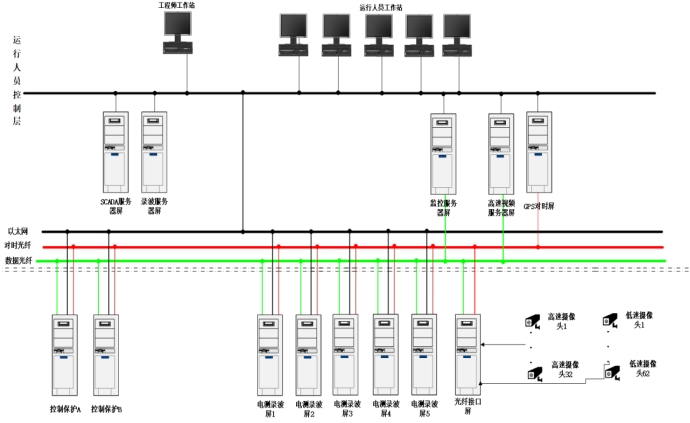

The ultra-high speed track acquisition system is composed of high speed acquisition system of maglev track information, high speed video acquisition and splicing system of track car movement, and SCADA monitoring system.
Core technology
With VM21 high-speed data acquisition equipment, a high-speed data acquisition system of 6000 digital channels and 6000 analog channels is established
Complete data collection and mass data storage with a sampling rate of 20k
Complete the timing trigger of high-speed camera and data acquisition equipment to obtain test data
Complete the fusion, analysis and presentation of mass data collection
Use DYNAS monitoring software to build a command center monitoring system (100,000 points)
Synchronous playback of high-speed video and wave recording files is completed
